作用与简单介绍/Brief Introduction：

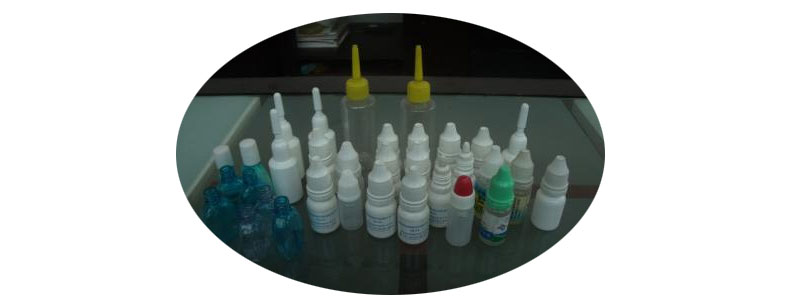

超声波焊接机符合于2-30ML种种金属材质的圆型扁形塑料管或夹层玻璃容器的眼灵药装灌、网络烟油等小含水量装灌.超声波焊接机由高精密度较凸轮轴轴度数公司给予度数等分盘地位上塞上盖;线速度快度凸轮轴轴齿轮传动系统给予旋盖头的举升;恒转矩旋盖;扭动泵量值溯源检测装灌;触模屏操纵.无瓶不装灌,不加以内塞,外盖.具地位精确度高,齿轮传动系统稳步,保护好玻璃瓶盖,量值溯源检测准.使用轻松等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特别/Characteristic：

◆微租赁重设、装量精确度、操作的方面。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆冷水机发动机转速可确定直流变频直流变频控速。the mainframe running speed is stepless frequency conversion.◆产生量全自动一定量控住。the product quantity can be controlled. ◆多样问题报错特点(如低汽压。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑一键欠费作用，对同一个单轨出現间隔无灌装线、无内塞症状可电脑一键欠费。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术应用性能指标/Main Technical Parameters：

用于技术参数Filling Volume	2-30ml
的生生产本事力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装准确度Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
半自动上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
机器人净重量Weight	550 kg
样貌长宽Dimension	1800*1000*1500mm
