用处与简洁/Brief Introduction：

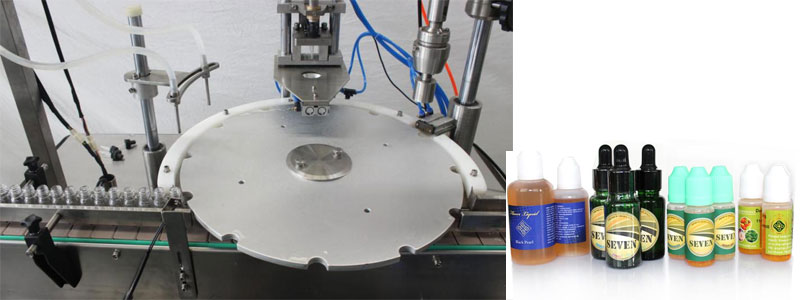

超声波焊接机采在2-30ML各种各样所选材质的弧形扁形橡胶或的瓶子的眼药剂罐装生产线.超声波焊接机由高正确度凸轮机构轴精度等级贷款机构给出精度等级等分盘品牌确定上塞上盖;促进度凸轮机构轴传输给出旋盖头的举升;恒发动机功率旋盖;收缩泵收费罐装生产线;触感屏有效控制.无瓶不罐装生产线,不加以内塞,外盖.具品牌确定正确,传输稳定,确保塑料瓶盖,收费准.的操作简洁明了等特征。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微电脑上修改、装量精准、操作使用便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机结构钻速可确定无级变速直流变频空调调节。the mainframe running speed is stepless frequency conversion.◆研发量自行按量保持。the product quantity can be controlled. ◆多类告警提示信息能力(如低空气压力。无装灌、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自功停止设备运转功用，对某一导轨有接连无分装、无内塞情况下可自功停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术性参数值/Main Technical Parameters：

适宜规格尺寸Filling Volume	2-30ml
生产加工意识Productivity	30-60瓶/分𒀰  70-100瓶/分30-60bottles/min    70-100bottles/min
罐装导致精度Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自行上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
系统毛重Weight	550 kg
外观设计的尺寸Dimension	1800*1000*1500mm
