用处与间介：/Purpose and introduction

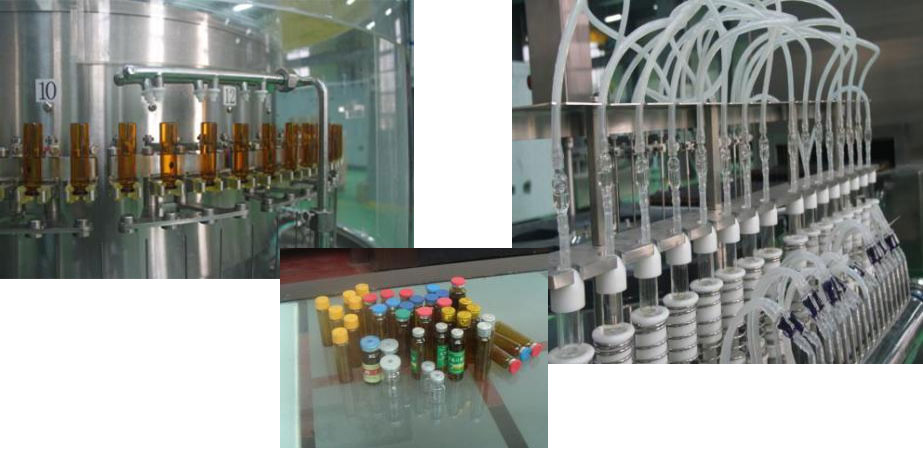

内服药方式液洗烘灌轧联调线由落地多普勒彩超检查波洗瓶机、队道式自动空调 循环往复高压蒸汽高压蒸汽灭菌烤箱、内服药方式液分装轧盖机等构造，比较适合于 5-30ml 等的不同规 格内服药方式液瓶的产量。可顺利完成对进口药品产量中安瓿瓶淋水、多普勒彩超检查波清洁工作、冲水、充 气、干燥高压蒸汽高压蒸汽灭菌、冷凝、分装、轧盖等流程步聚的联调正常运行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征:/characteristic

◆洗瓶机主要采用机器手夹瓶，选用多类规格型号的罐子；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶应用雾气喷针反复关注放形式，洗成果好，厉行节约新能源。并可设针架防会抖装置设备，挺高喷针放可乐瓶的明确度，缩减断针现状再次发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整块气水导压管、喷针非常自己合在一起，以防了交叉重合环境污染，复合GMP耍求耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前改加缓冲区块，有保护区丝杠，限制碎瓶效应Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选择局部进品同时进行带，连结拨块输送带内服液，使用不稳定性牢靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆干燥箱主要采用红外线烧水管，不锈钢圆管烧水管三层烧水工作温度平均性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机能选配瓷器泵、不锈钢材质的泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆罐装无瓶止灌，无瓶不轧盖功能性。Pieces filling without bottle filling, no bottle no rolling function.◆整线进行PLC总调整、变頻器、触控屏调整技术水平，加载安全靠得住。触控屏可体现各单人的加载环境，各调整点的压力、风速、风速、温湿度等体现，各按钮开关环境和内部出现出现故障体现，内部出现出现故障自己检验和内部出现出现故障具体分析及清除方式 。使整个的研发环节提高自然化调整，联线享有三机电气自动化静态平衡系统设计，确认研发平衡靠得住。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.据雇主的要有，还可供加装：According to the needs of customers, but also available for selection:◆欧姆龙、斯耐德、西门子、台达等国际品牌管理操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气各种压力、水温表及高周波波刚度、埃尘离子、流速在线播放监测、警告、记载、网页打印软件。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌隔开器整体。Mixer ORABS, CRABS, aseptic isolator system.

科技规格：technical parameters

适合规格参数Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装精准度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖及格率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
